TimelineLabels

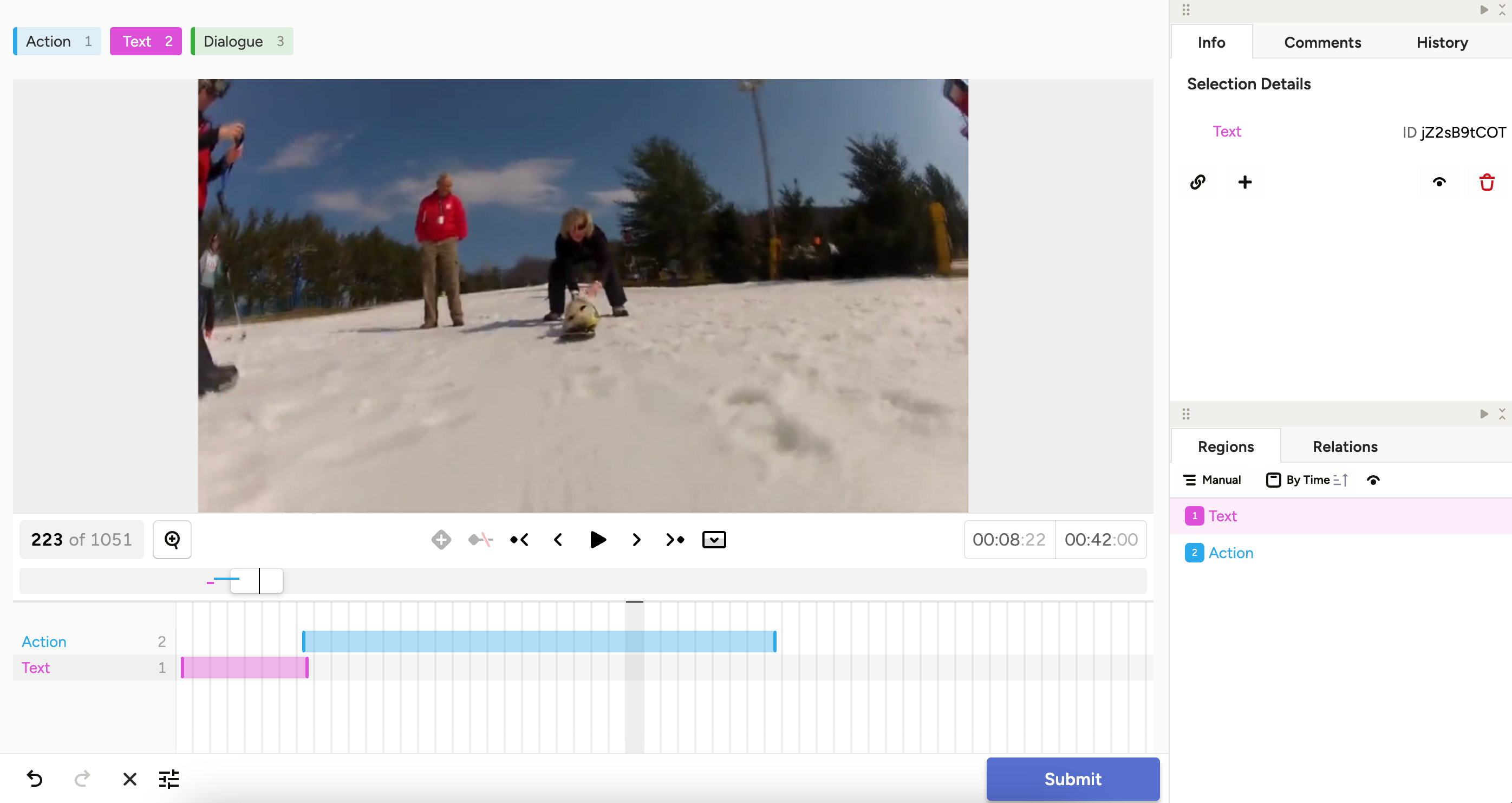

Use the TimelineLabels tag to classify video frames. This can be a single frame or a span of frames.

First, select a label and then click once to annotate a single frame. Click and drag to annotate multiple frames.

To move forward and backward in the timeline without labeling, ensure that no labels are selected before you click.

Use with the <Video> control tag.

Parameters

Param	Type	Description
name	string	Name of the element
toName	string	Name of the video element

Sample Results JSON

Name	Type	Description
value	Object
value.ranges	Array.<object>	Array of ranges, each range is an object with start and end properties. One range per region.
[value.timelinelabels]	Array.<string>	Regions are created by TimelineLabels, and the corresponding label is listed here.

Example JSON

{
  "value": {
    "ranges": [{"start": 3, "end": 5}],
    "timelinelabels": ["Moving"]
  }
}

Example

<View>
  <Header>Label timeline spans:</Header>
  <Video name="video" value="$video" />
  <TimelineLabels name="timelineLabels" toName="video">
    <Label value="Nothing" background="#944BFF"/>
    <Label value="Movement" background="#98C84E"/>
  </TimelineLabels>
</View>
